White 40 Meter Z Boom Concord Concrete Pump

108 Feet Reach From Front Bumper

This is one of our medium sized trucks. It has a vertical reach of 39.70 meters or 130′ 0″  and a horizontal reach of 35.80 meters or 117′ 5″.

Boom Style: Multi-Z

Number of Sections: 4

Give us a call for availability at 804-739-1100 (tap to call on mobile)





Our Other Trucks

Download

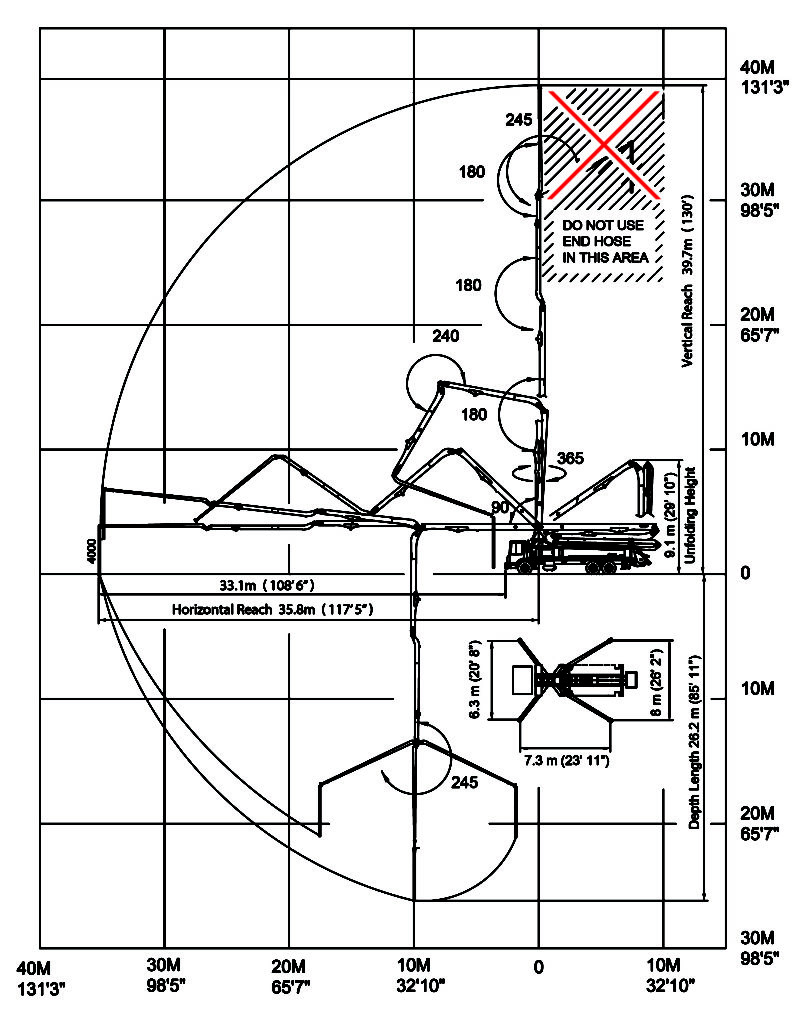

Height & Reach Specifications

Vertical Reach

39.70 meters130′ 0″

Horizontal Reach

35.80 meters117′ 5″

Reach From Front of Truck

33.10 meters108′ 6″

Reach Depth

26.20 meters85′ 11″

1st Section Articulation

92°

2nd Section Articulation

180°

3rd Section Articulation

240°

4th Section Articulation

245°



Boom Section Length Specifications

1st Section Length

9.50 meters31′ 2″

2nd Section Length

8.60 meters28′ 3″

3rd Section Length

8.70 meters28′ 7″

4th Section Length

8.90 meters29′ 2″



Outriggers

Outrigger spread: L-R-front hydraulically extend out &
down

6.30 meters20′ 8″

Outrigger spread: L-R-rear hydraulically swing out &
extend down

8.00 meters26′ 2″
